changingworship
#1 Posted : Wednesday, October 5, 2022 1:46:55 AM(UTC)
changingworship

Rank: Newbie

Groups: Registered
Joined: 10/3/2022(UTC)
Posts: 7
United Kingdom
Location: Halifax

Hi,

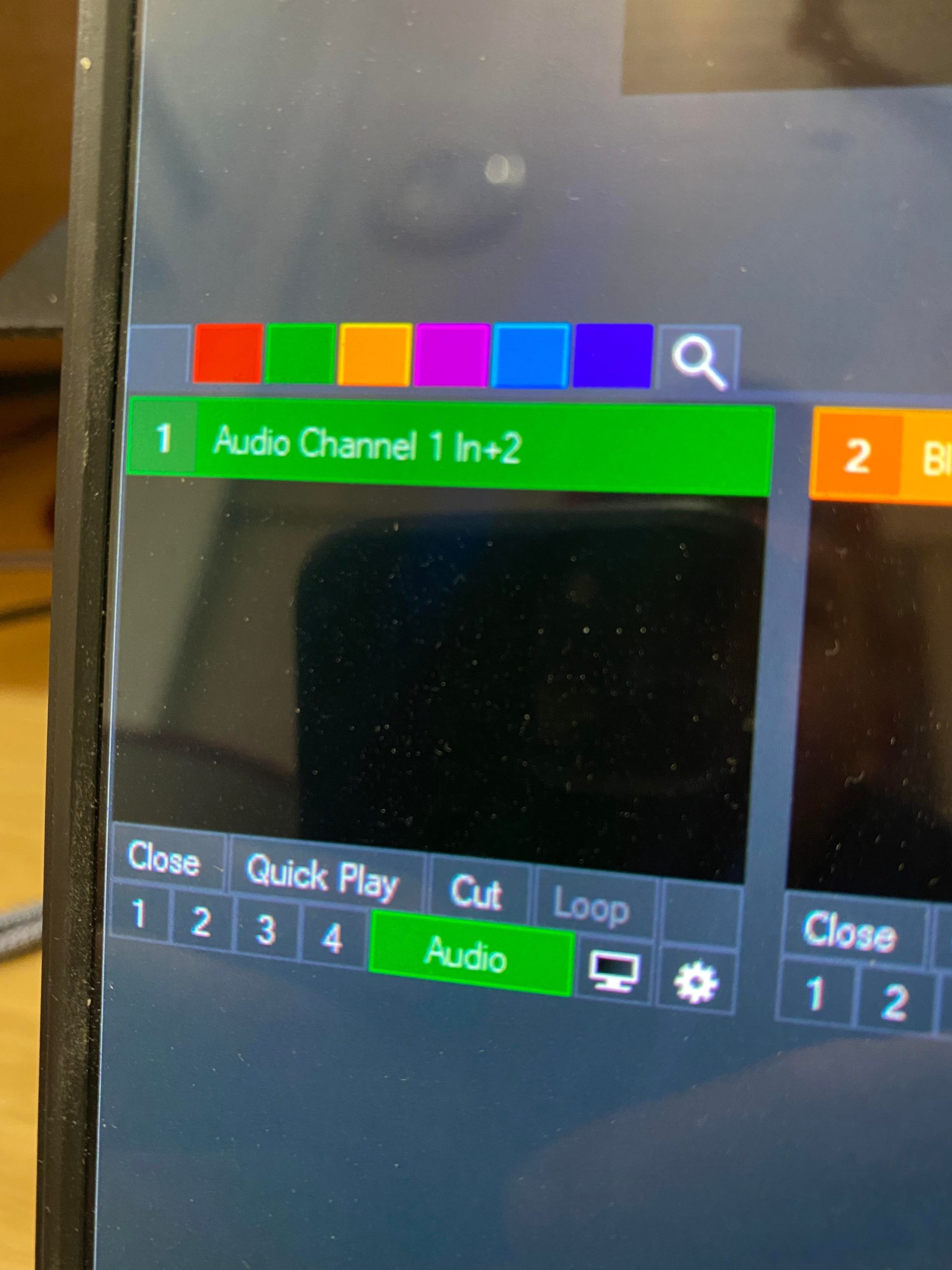

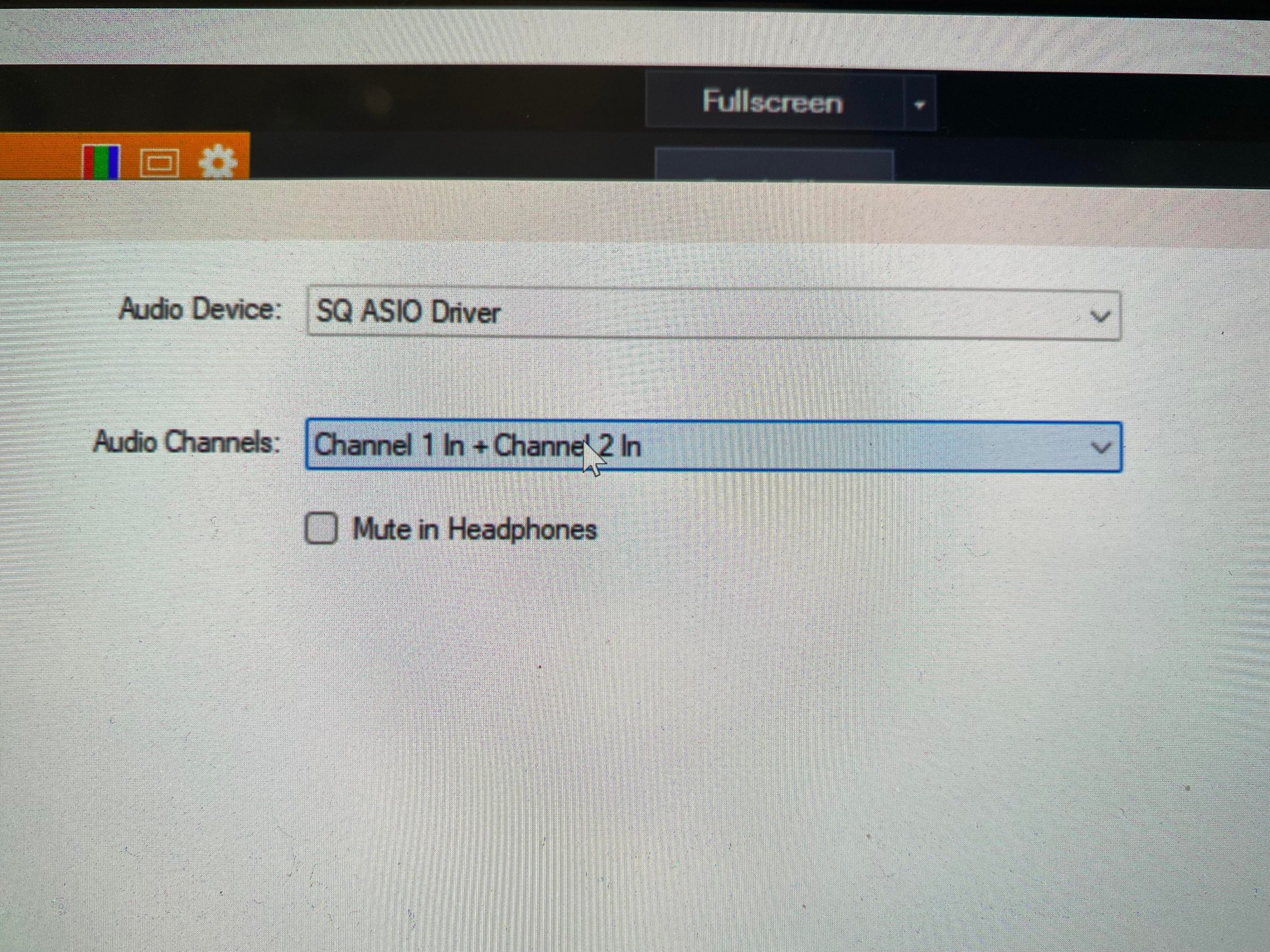

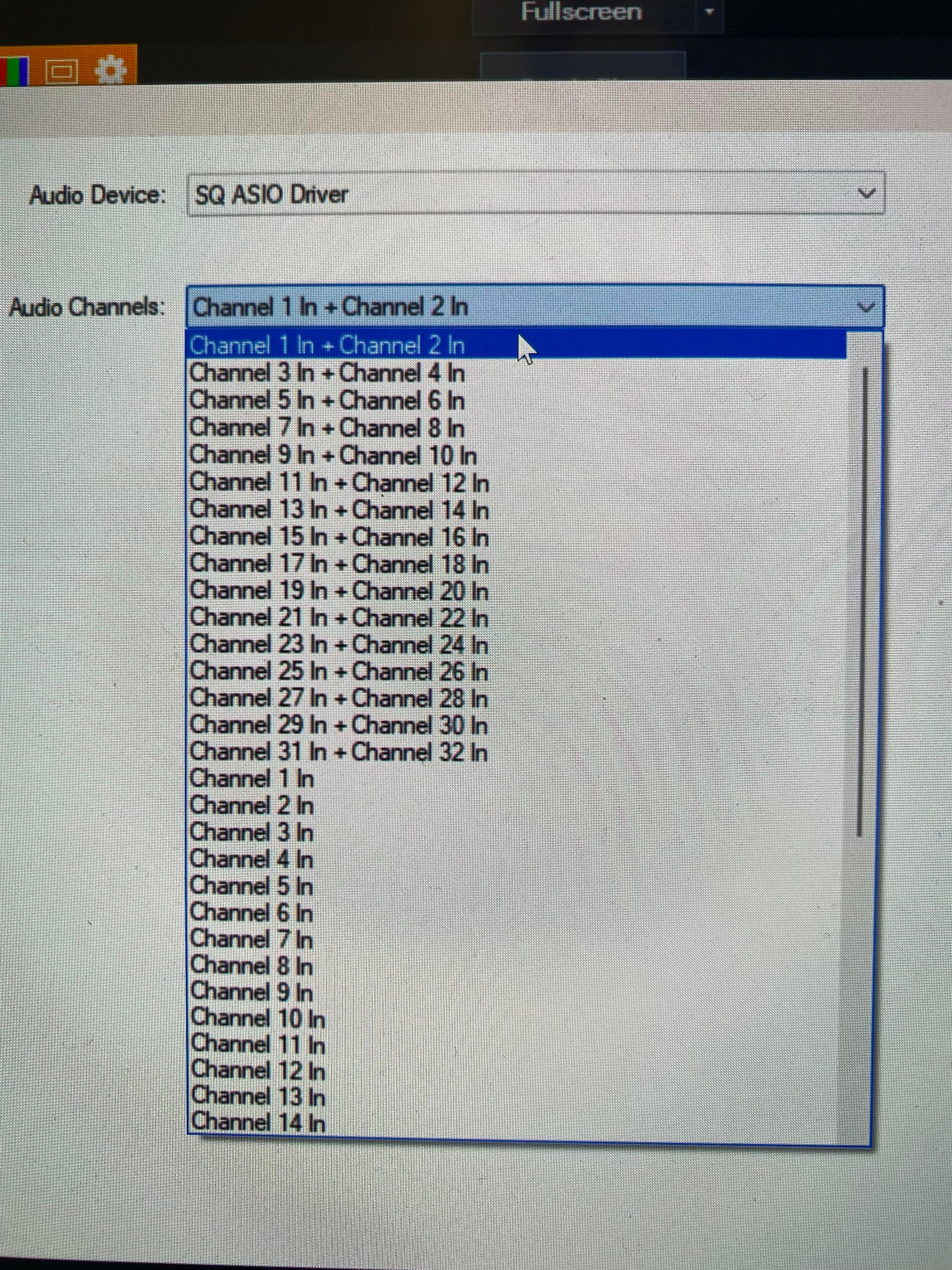

I have got a new Allen & Heath SQ-5 desk and I’m wanting to stream audio. I’ve downloaded all of the drivers and the DAW control (midi control is what they now call it). The laptop recognises it. I’ve set the routing on the desk to match the output on usb 1+2. In voix when I add an audio input, it shows SQ 1+2, 2+3 etc. When they open, it shows audio enabled but there is no visualisation on the right side of the input. It appears in the audio mixer but there is no input.

What am I doing wrong?

UserPostedImage

UserPostedImage

UserPostedImage
elvis55
#2 Posted : Wednesday, October 5, 2022 3:47:55 AM(UTC)
elvis55

Rank: Advanced Member

Groups: Registered
Joined: 3/17/2017(UTC)
Posts: 402
Switzerland
Location: Luzern - Schweiz

Thanks: 60 times
Was thanked: 54 time(s) in 48 post(s)
Software:
Windows ASIOTM/WDM Driver ?
https://www.allen-heath....sq-series/sq-5/#software
changingworship
#3 Posted : Wednesday, October 5, 2022 4:01:59 AM(UTC)
changingworship

Rank: Newbie

Groups: Registered
Joined: 10/3/2022(UTC)
Posts: 7
United Kingdom
Location: Halifax

Thanks for the quick reply. I've installed the ASIO/WDM driver already.
elvis55
#4 Posted : Wednesday, October 5, 2022 4:40:43 AM(UTC)
elvis55

Rank: Advanced Member

Groups: Registered
Joined: 3/17/2017(UTC)
Posts: 402
Switzerland
Location: Luzern - Schweiz

Thanks: 60 times
Was thanked: 54 time(s) in 48 post(s)
changingworship
#5 Posted : Wednesday, October 12, 2022 4:42:47 PM(UTC)
changingworship

Rank: Newbie

Groups: Registered
Joined: 10/3/2022(UTC)
Posts: 7
United Kingdom
Location: Halifax

Thanks for helping point me in the right direction. Whatever options I try, it doesn’t provide audio. I have tried the asio driver and drop down list as well as the options in my OP. I've got no idea what to try next.

UserPostedImage

UserPostedImage

UserPostedImage
elvis55
#6 Posted : Wednesday, October 12, 2022 5:20:43 PM(UTC)
elvis55

Rank: Advanced Member

Groups: Registered
Joined: 3/17/2017(UTC)
Posts: 402
Switzerland
Location: Luzern - Schweiz

Thanks: 60 times
Was thanked: 54 time(s) in 48 post(s)
Maybe you can try Asio4all.
https://www.asio4all.org/
changingworship
#7 Posted : Thursday, October 13, 2022 1:15:45 AM(UTC)
changingworship

Rank: Newbie

Groups: Registered
Joined: 10/3/2022(UTC)
Posts: 7
United Kingdom
Location: Halifax

Turns out they have put an option in a setup menu to switch between SQ-Drive and USB B. It is automatically set to SQ-Drive. It needs to be set to USB B.

Thanks for all your suggestions.
